Streamfeeder ST-1250 Vertical Discharge, Dispenses Product Straight Down 90 Degrees, Inserts Into Open Top Cartons, Stand-Up Pouches, Pharmaceuticals, Magazine Books Bag Box Product Insertion

Streamfeeder ST-1250 Vertical Discharge

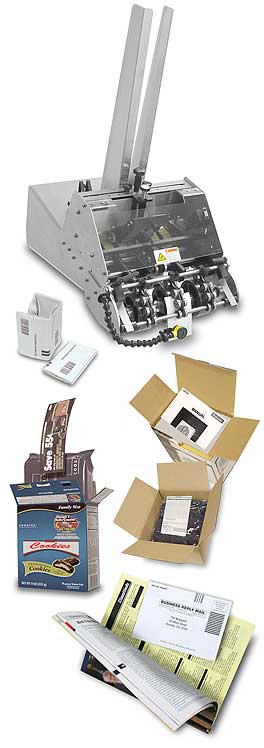

This Streamfeeder Pro Series ST-1250 Vertical Discharge features a vertical discharge that dispenses product straight down at 90 degrees. It is designed to deliver inserts into open-top cartons, stand-up pouches, magazines, books, and more. Easily adjusts to accommodate various product sizes and types.

Applications:

(click to view video)

Streamfeeder Product Insertion

Streamfeeder Pharmaceuticals

Streamfeeder Magazine Insertion

Streamfeeder Box Insertion

Streamfeeder Bag Insertion

Technical Data
Maximum Product Size:	8.5 W x 11 L in (215.9 x 279.4 mm)*
Minimum Product Size:	3.75 W x 3.75 L in (95.25 x 95.25 mm)*
(optional)	2 W x 2.5 L in (50.8 x 63.5 mm)*
Min/Max Product Thickness:	.003-1.0 in (.076-25.4 mm)*
Belt Speed:	5500 in/min (140,000 mm/min)
Electrical Requirements:	115/230vac, 50/60Hz, 6A
Weight:	89 lbs. (40.367 kg)
*Contact us for product sample evaluation
