Streamfeeder Rotary Placer

Designed to be highly versatile with impressive accuracy and high-speed for literature or shallow-tray feeding, multi-task assembly and denesting applications. Ideal in situations where you must not mar the product. Features innovative design and heavy-duty construction. Easily integrates with customers’ existing equipment.

applicationS: (click to view video)

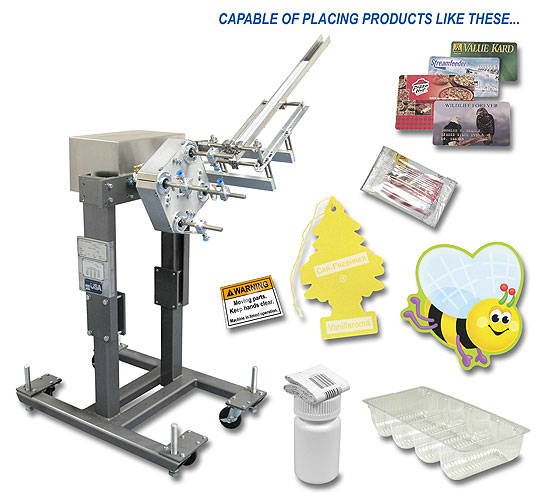

Streamfeeder Flat or folded literature Streamfeeder Die Cut Products
Streamfeeder Plastic Cards Streamfeeder Coupons
Streamfeeder Overwrapped Products (pouches) Streamfeeder Labels
Streamfeeder Trays Streamfeeder Embossed Products
technical data
Maximum Product Size: 6 W x 6 L in (152 x 152 mm)*
Minimum Product Size: 1.5 W x 1.5 L in (38 x 38 mm)*
Speed: 400 cycles per minute
Electrical Requirements: 115vac, 60Hz, 10A
Air Requirements: 16 CFM @ 80 PSI

Overall Dimensions:
Dimensions do not include stand

30 W x 32 D x 17 H in (762 x 813 x 432 mm)
*Optional product size available
