Streamfeeder "Mini" Reciprocating Placer

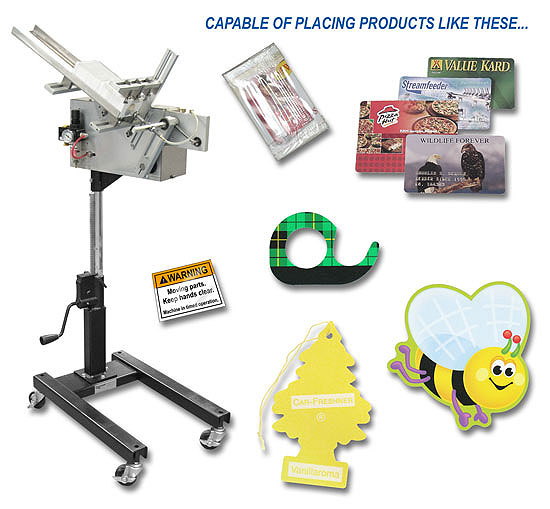

Like its larger cousin - the Streamfeeder Reciprocating Placer - the Streamfeeder “Mini” is designed to accurately place products onto intermittent or continuous motion conveyors. Ideal in situations where you must not mar the product. Use it in areas where space is limited. Easily adapts to customers’ existing conveyors and production machinery.

applicationS: (click to view video)



Streamfeeder Flat or folded literature Streamfeeder Coupons
Streamfeeder Plastic Cards Streamfeeder Labels
Streamfeeder Overwrapped Products (pouches) Streamfeeder Embossed Products
Streamfeeder Die Cut Products
technical data
Maximum Product Size: 6 W x 6 L in (152 x 152 mm)*
Minimum Product Size: 1.5 W x 1.5 L in (38 x 38 mm)*
Speed: 65 cycles per minute
Electrical Requirements: 115vac, 60Hz, 2A
Air Requirements: 10 CFM @ 80 PSI

Overall Dimensions:
Dimensions do not include stand

14 W x 20 D x 8 H in (355 x 508 x 203 mm)
*Optional product size available
